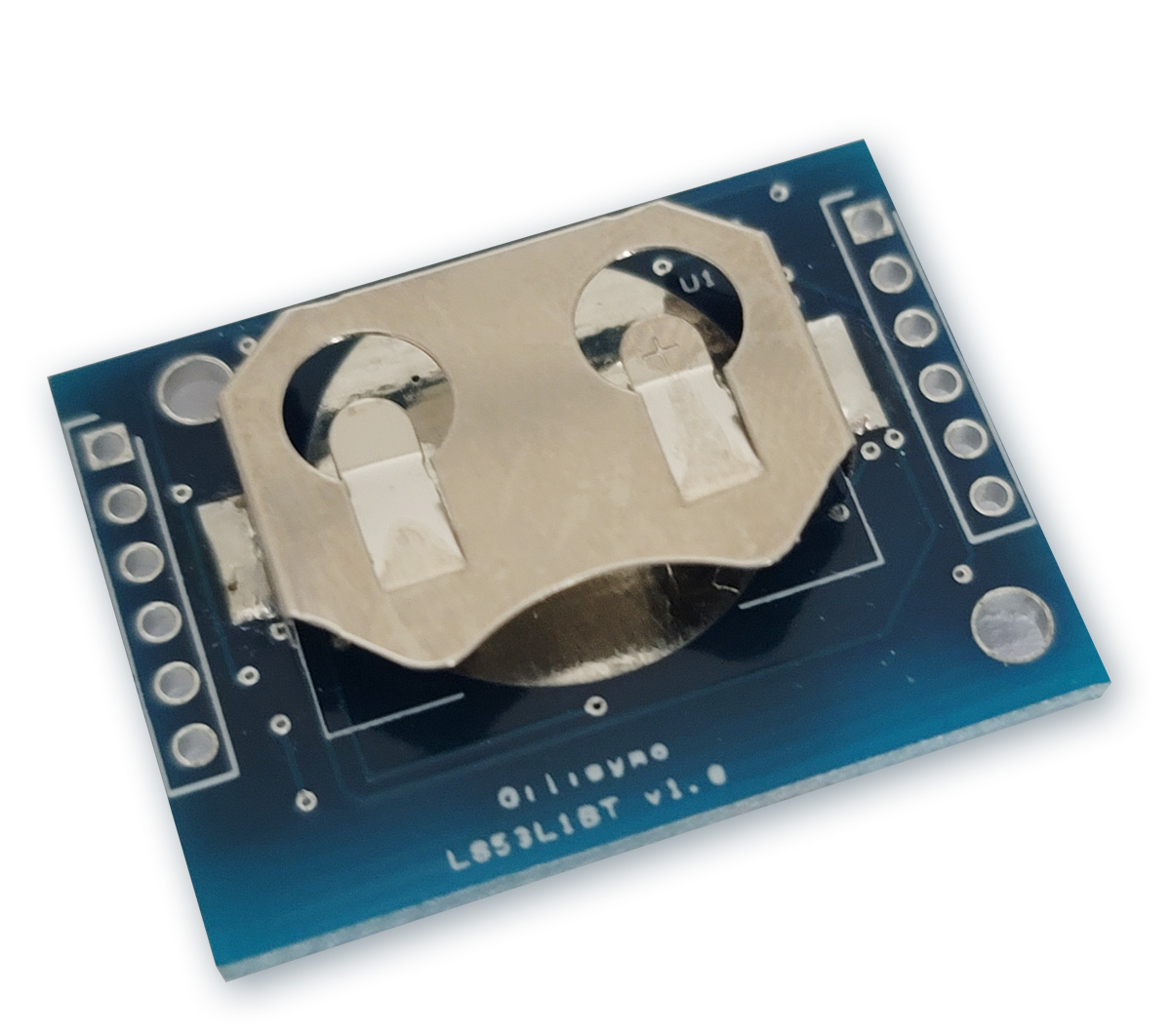

LS53L1BT Motion and Distance IOT Bluetooth Board - Image 1

LS53L1BT Motion and Distance IOT Bluetooth Board - Image 2

Click to enlarge

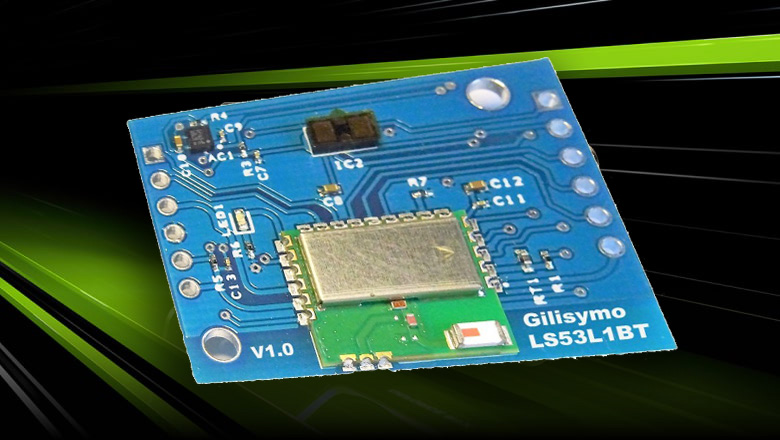

LS53L1BT Motion and Distance IOT Bluetooth Board

Time-of-Flight VL53L1CB and a MEMS LIS2DH12TR from STMicroelectronics

Warning : Cover glass NOT included!

Gilisymo Shopping Event

Hurry and get discounts on all Gilisymo devices up to 20%

Sale_coupon_15

28,00 €

20 in stock (can be backordered)

Quantity	Price	Discount
0-5	28,00 €	0%
6-10	22,40 €	20%
11-15	21,00 €	25%
16+	19,60 €	30%

20 in stock (can be backordered)

Compare

Add to wishlist

16 People watching this product now!

Pick up from the Gilisymo Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Variable

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Variable

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Three components from STMicroelectronics

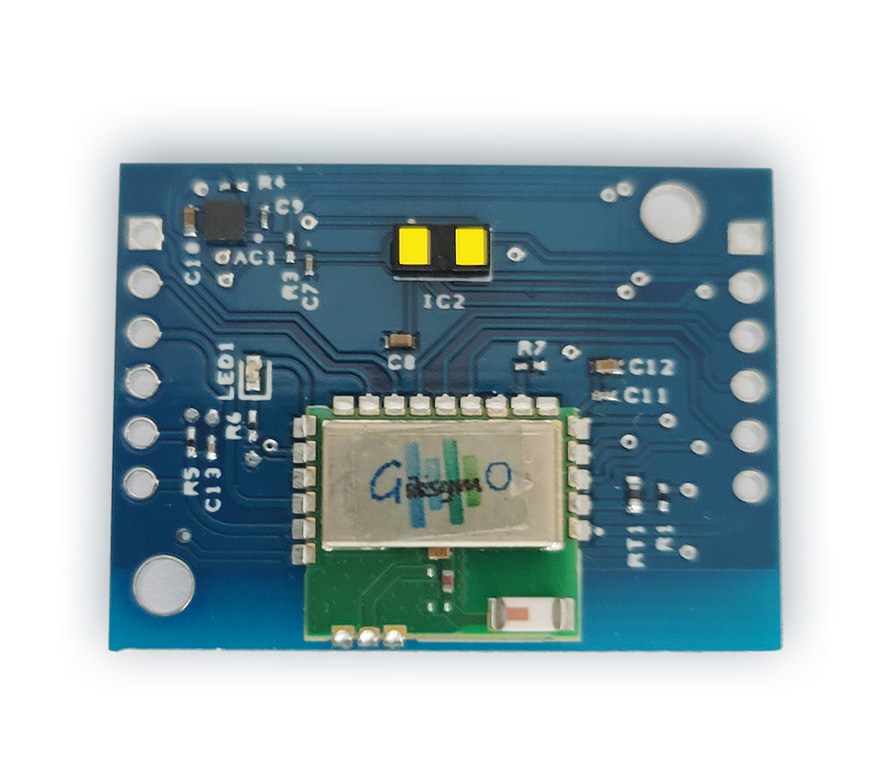

This board uses the Certified module SPBTLE-1S, a MEMS LIS2DH12TR and a time-of-Flight VL53L1CB

LED for the advertisement

The SPBTLE-1S is able to read external temperature and Battery voltage level by using the internal ADC1.

8 m detection

with full field of view

VL53L1CB from STMicroelectronics
Features

Fast, accurate distance ranging
Typical full field-of-view (FoV): 27 °
8 m detection with full field of view
60 Hz ranging capable up to 300 cm
Immune to cover glass crosstalk and fingerprint smudge at long distance
Multi-Object detection capable
Multizone scanning with selectable array (2x2, 3x3, 4x4, or defined by user through software)
Programmable region-of-interest (ROI) size and position
Eye safe
940 nm laser VCSEL
Class 1 laser device compliant with latest standard IEC 60825-1:2014 - 3rd edition

LIS2DH12TR STMicroelectronics
Features

- The LIS2DH12 is an ultra-low-power high performance three-axis linear accelerometer

- ±2g/±4g/±8g/±16g selectable full scales

- 6D/4D orientation detection

- “Sleep-to-wake” and “return-to-sleep” functions

- Free-fall detection

- Motion detection

- Embedded temperature sensor

- Embedded FIFO

SPBTLE-1S Very low power application processor module for Bluetooth® Low Energy v4.2
Features

- Bluetooth v4.2 compliant

- Supports master and slave modes

- Multiple roles supported simultaneously

- High performance, ultra-low power Cortex-M0 32-bit based architecture core

- Programmable embedded 160 KB Flash

- 24 KB embedded RAM with data retention

More informations

1 x UART, 2 x I²C, 1xSPI, 14 x GPIO, 2 x multifunction timer, 10-bit ADC, Watchdog & RTC, DMA controller, PDM stream processor, SWD debug Interface
Bluetooth radio performance:
Max Tx power: + 5 dBm
Excellent link reliability
On-board chip antenna
Small form factor: 11.5 mm x 13.5 mm
Complemented with Bluetooth low energy protocol stack library (GAP, GATT, SM, L2CAP, LL)
AES security co-processor- Bluetooth low energy SDK with wide range of profile available

EU (RED) Type certificat FCC, IC modular approval certification
SRRC Chinese Certification
BT SIG End Product QDID
Pre-programmed UART bootloader
Operating supply voltage: from 1.7 to 3.6 V
Operating temperature range: -40 °C to 85 °C

Internet of Things
Smart Home
Building and Industrial Automation- Smart Lighting
Remote and access control
Fitness, wellness and sports- Consumer medical
Security and proximity
Assisted living
PC and smart phone peripherals

Secure access page

Name	Info
Laser sensor reference	VL53L1CB
BT module reference	SPBTLE-1S
Laser Class	1 (IEC 60825-1:2014 - 3rd edition)
Control/Data Interface	BT, UART, I2C, GPIO, ADC
I/O power level	3V5
Board Power supply	2V8 - 3V5

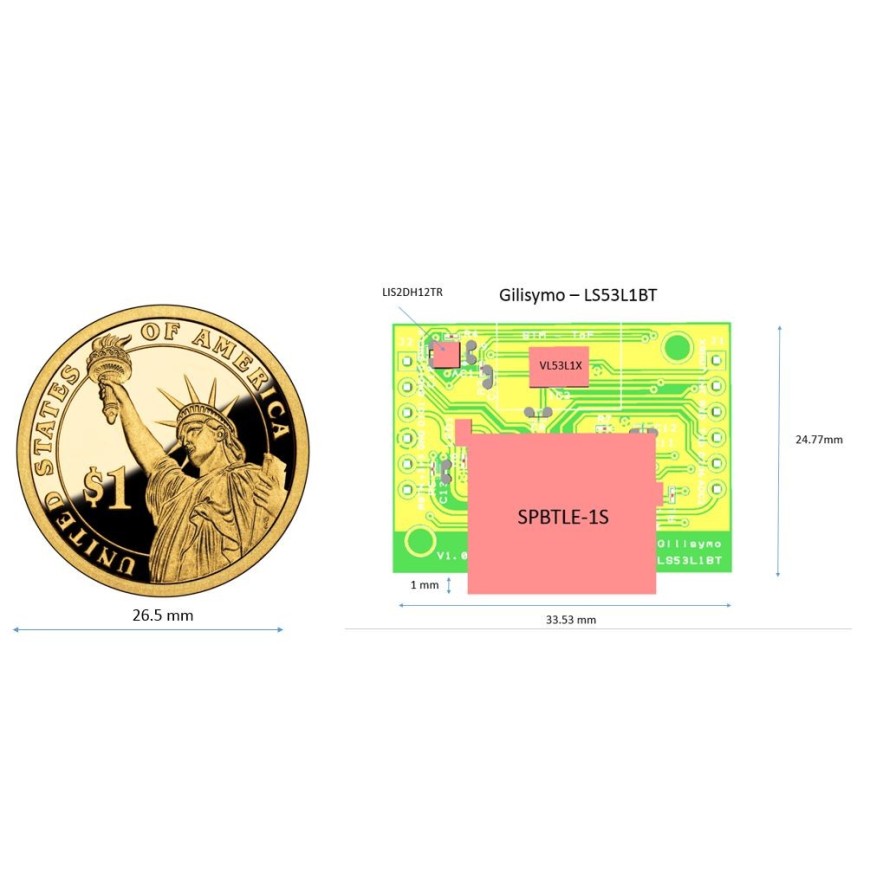

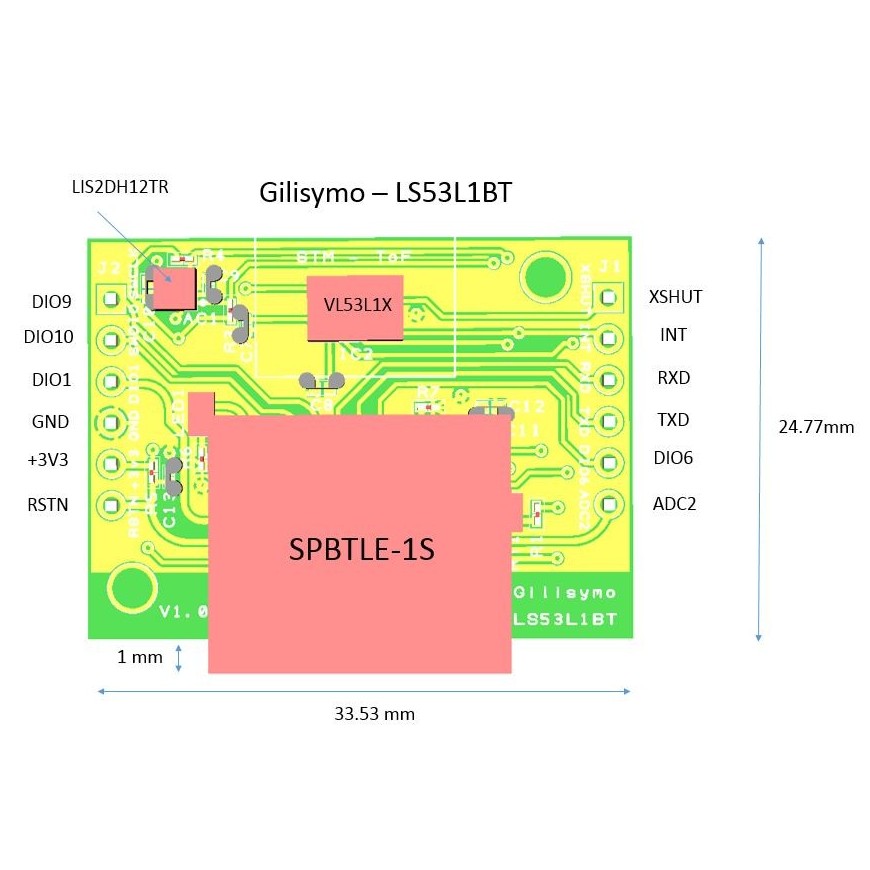

Board dimension (lxL) in mm	33.53x24.77
Embedded firmware	Yes : beacon example.
